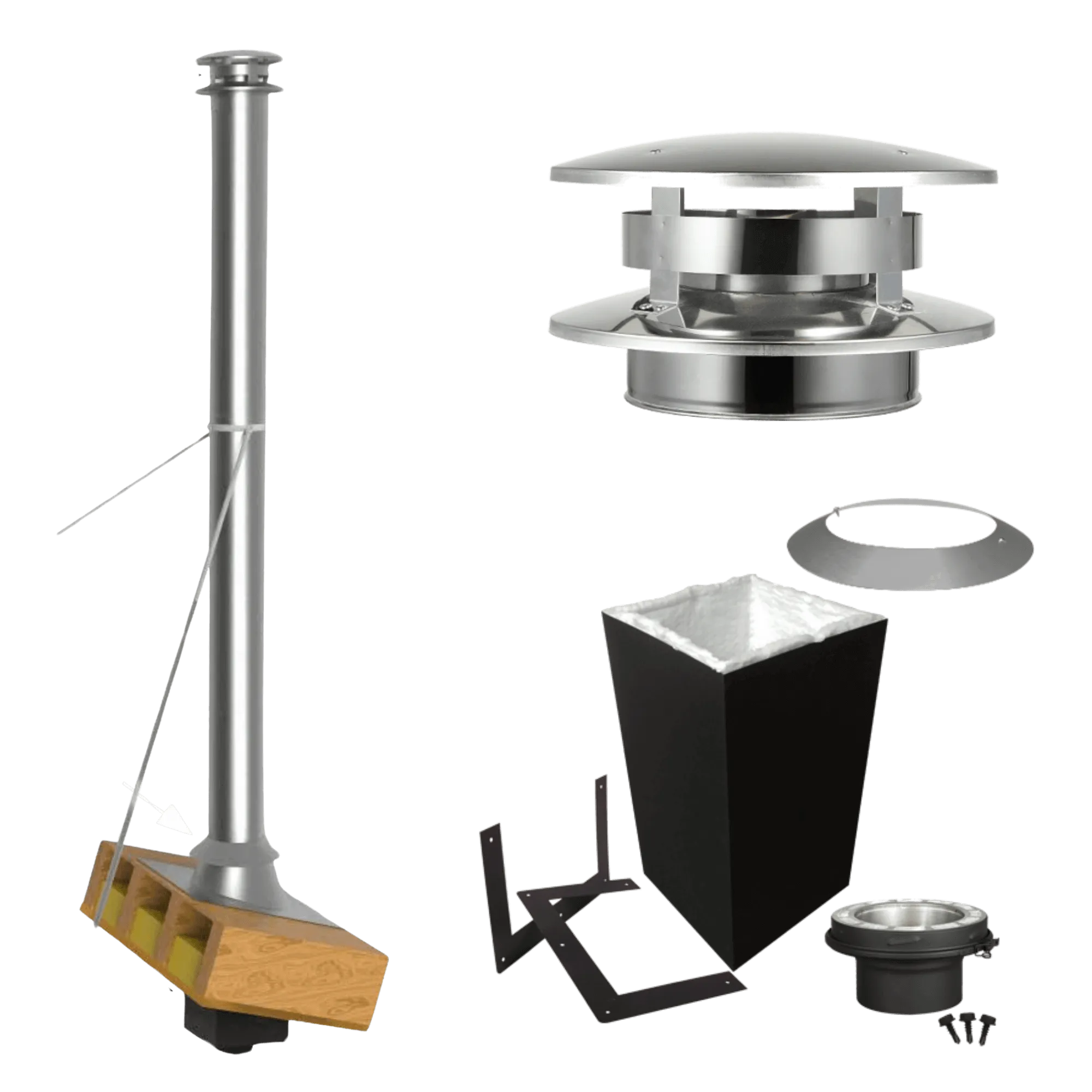

The Summum Pro Cathedral Starting Kit is for cathedral roof penetrations and includes the base components required for your new chimney installation. You need to add the to accommodate your desired chimney height, and other required components depending on the specific roof construction.
CATHEDRAL STARTING KIT: SC-EDC
- Rain Cap with Shield -
- Insulated Square Ceiling Support (Flue Extension, 24" Insulated Square Ceiling Support, Collar, and Trim) -
Why SUMMUM PRO?
SUMMUM PRO chimney products are the only residential chimney solution entirely made of 304 interior & exterior stainless steel with a mirror finish. It is the strongest chimney product available on the market and easily installed. Tested and certified to the ULC S-629 standard by OMNI Laboratories (which have the strictest standards in North America), SUMMUM PRO chimney products are manufactured to last and include a limited lifetime warranty.
One of the many tests required to achieve the ULC S-629 standard requires that the stack withstands testing of three thirty-minute thermal shocks at a temperature of 1150°C (2100°F). SUMMUM PRO chimneys are specifically designed for use with stoves, fireplaces and residential furnaces, and are suitable for use with heating appliances using the following fuels:
- Wood
- Fuel oil
- Coal
- Charcoal
- Gas
- Granule
SUMMUM PRO chimneys only require a 2″ clearance to combustible materials, and our round and square supports allow the chimney to be installed with approximatively 2″ of clearance in the area protected by the support.
- Maximum continuous 650° C (1200° F)
- Forced combustion 925° C (1700° F)
- Tested at 1150° C (2100° F)
DETAILS
- Interior wall: 304 stainless steel .019” thick
- Exterior wall: 304 stainless steel .019” thick (SUMMUM PRO)
- Joint: Continuous invisible welding interior and exterior
- Insulation: Continuous cover in ceramic wool
- Thickness of the wall: 1-1/2"
- Download:
